Wanlisp4-300K900L3500 Ultrasonic Cutting Machine for Russia Apple Flavor Bread Machine

Wanlisp4-300K900L3500 Ultrasonic Cutting Machine for Russia Apple Flavor Bread Machine is an advanced machine that realizes precise processing through ultrasonic high-frequency vibration cutting technology, providing accurate and efficient cutting results especially when dealing with bread that is soft, sticky or contains a large number of nuts. It cuts with extreme precision, reducing resistance when in contact with the bread for a smoother cut, avoiding the problem of deformation or collapse of the bread form due to excessive pressure, and ensuring that each slice of bread is even and neat. This new machine realizes automated cutting, which greatly improves production efficiency, reduces manual intervention and lowers production costs.

★Average speed: 30-40 cuts per minute

★Touch screen with user-friendly interface

★Reliable and durable ultrasonic blade

★Increased quality and labor saving enhance capacity

★Improved portion quality and consistency

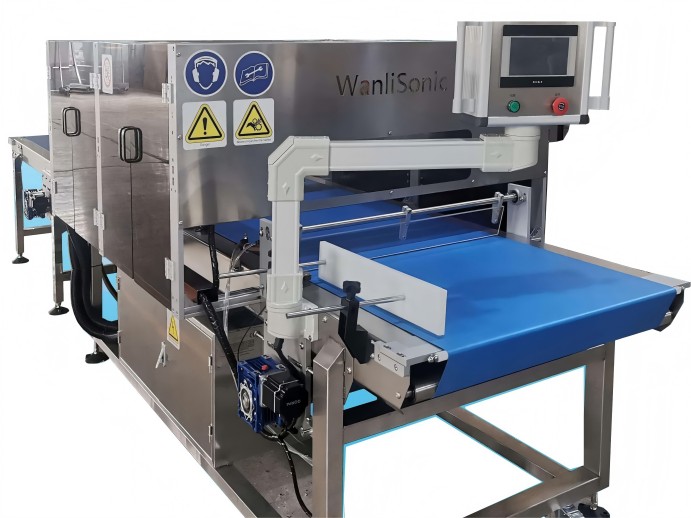

Product Details Display

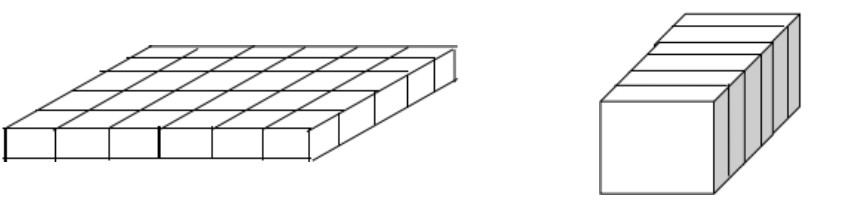

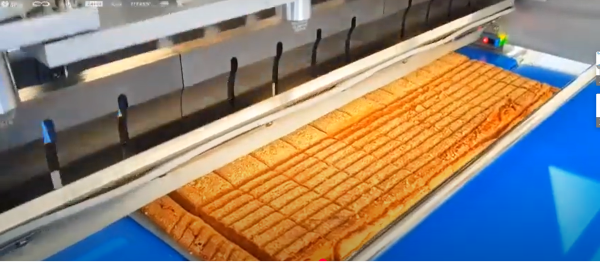

Cutting Mode & Cutting Example

Features

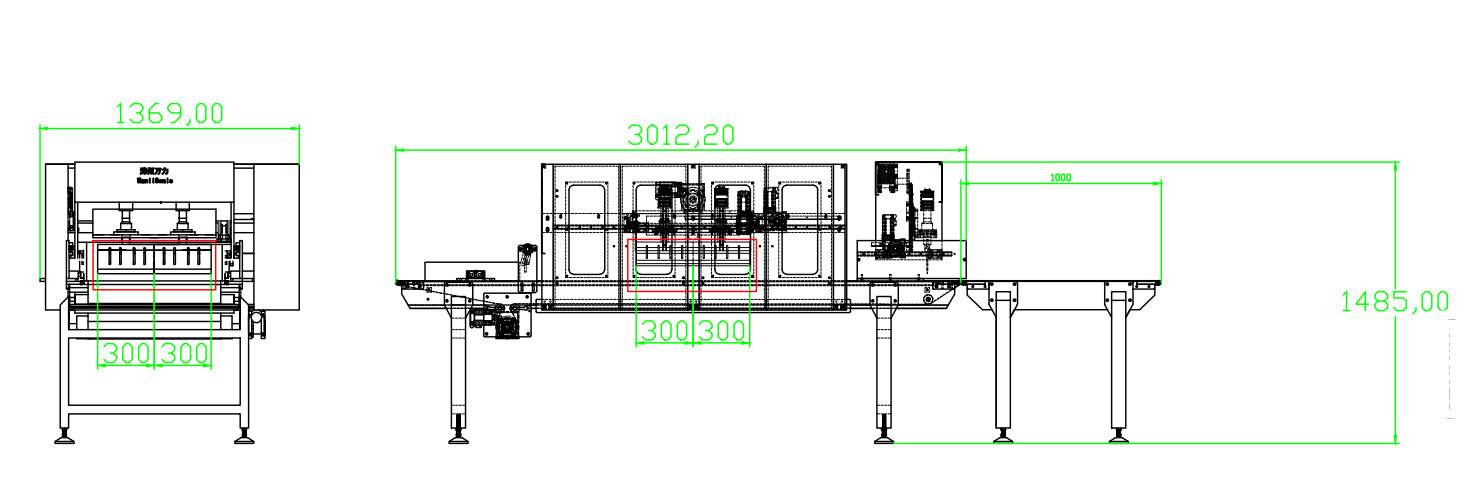

Machine Dimensions (L xWxH)

• Fully Stainless steel construction & food grade plastics
• Easy to clean the blade and machine
• A wide range of blade types for various applications
• Portioning round Products
• A function of sterilization with UV light
• Remote access capability with Ethernet
• Safety protective grating
• Motor-driven rotary ultrasonic blade
• Easy-to-use editing programs
• 3 user login levels-operator, supervisor and technician

Product Description

Model	Wanlisp4-300K900L3500
Dimensions	L3000W1400H1550mm
Weight	Net Wt. 550KGS, Gross Wt.600KGS
Voltage	220V, single
Rated power	8000W
Frequency	50Hz-60Hz
Ultrasonic Frequency	20000Hz
Amplitude	20%-40%
Cross cutting speed	20-60cuts/Minute; high-speed model:60-180cuts/Minute
Slit cutting speed	30-40cuts/Minute; high-speed model:40-100cuts/Minute
Number of blades	4 (optional)
Blade materials	Titanium Alloy
Blade size	300mm/pc (optional)
Cut type	Square, rectangular, slices

Components

No.	Name of Component	Brand	Introduction	Picture
1	Ultrasonic Blade	Wanlisonic	Made of Titanium Alloy material, The mechanical strength is better than that of steel, the acoustic transmission is good, the sound frequency is not depleted in its internal transmission, and it has strong acid-base corrosion ability,
2	Ultrasonic Generator	Wanlisonic	The advantages of original ultrasonic generator include automatic frequency lock function, automatic frequency tracking,low coefficient of temperature change, and there will be 7*24 hours of aging test before delivery.
3	Thicken and Bigger Cutting Machine Framework	Wanlisonic	Stainless steel, easy to clean, made with thicken china standard material, made by Anshan Iron and Steel Company
4	Energy Transducer	Wanlisonic	Electric energy is converted to kinetic energy, to make the blade cut the products
5	Touch Screen	Wecon/Delta	Intelligence control, for the operation and monitor
6	PLC Control System	Wecon/Delta	Anti-error operation, safety testing, alarm indication
7	Reley	OMRON	Touch switch
8	Sensor	Leuze	For Testing whether have the products under the blade
9	Frequency Inverter	SANJING or Delta	Driving the conveyor to work
10	Servo Motor	Dorna	Driving the blade to work
11	Stepmotor	Dorna	Driving the blade to work
