Inline Ultrasonic Slicer
Home> Inline Ultrasonic Slicer
Wanlisp4-300K900L3500 Ultrasonic Cake Cutting Machine

Wanlisp4-300K900L3500 Ultrasonic Cake Cutting Machine

Wanlisp4-300K900L3500 Ultrasonic Pure Cake Cutting Machine is an inline food slicing machine with ultrasonic cutting technology, built to process sticky, frozen, delicate and complex products, such as sponge cakes, cheese cakes, brownie cakes, pies, quiches, pizza, pastries and other products with a wide rang of temperature from -15 degree Celsius to ambient temperature. is a specialized piece of equipment designed for precision cutting of cakes, particularly those with delicate or intricate structures. It utilizes ultrasonic technology to ensure clean, smooth, and precise cuts without compromising the texture or integrity of the cake.
★Average speed: 30-40 cuts per minute
★Touch screen with user-friendly interface
★Reliable and durable ultrasonic blade
★Increased quality and labor saving enhance capacity ​
★Improved portion quality and consistency

Get a Quote

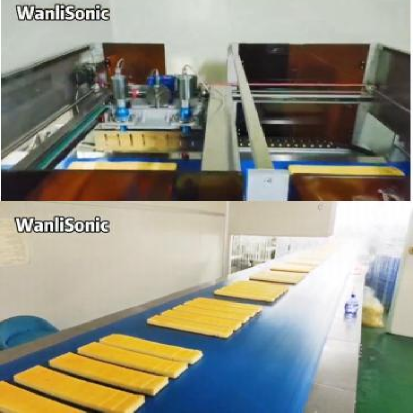

Product Details Display

分组 3 (6).png 2.jpg (2).png

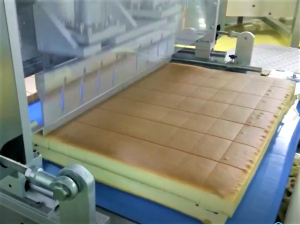

Cutting Mode & Cutting Example
3.png.png 4 (1).jpg.png 4(2).png.png 4（3）.jpg

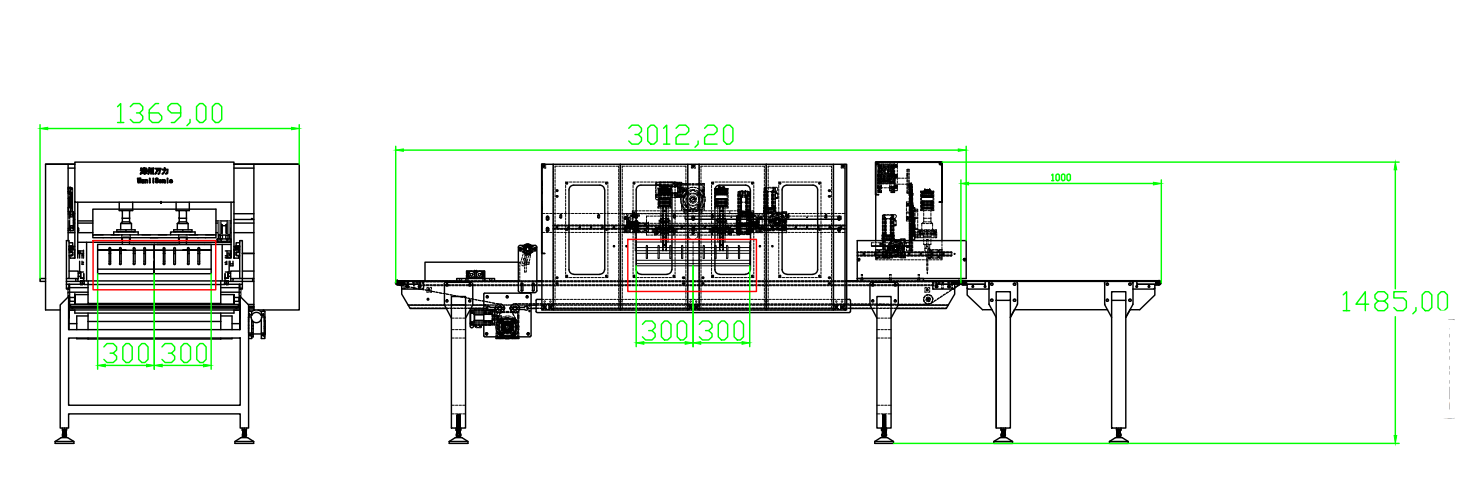

Features Machine Dimensions (L xWxH)

• Fully Stainless steel construction & food grade plastics
• Easy to clean the blade and machine
• A wide range of blade types for various applications
• Portioning round Products
• A function of sterilization with UV light
• Remote access capability with Ethernet
• Safety protective grating
• Motor-driven rotary ultrasonic blade
• Easy-to-use editing programs
• 3 user login levels-operator, supervisor and technician


Product Description

Model

Wanlisp4-300K900L3500

Dimensions

L3000*W1400*H1550mm

Weight

Net Wt. 550KGS, Gross Wt.600KGS

Voltage

220V, single

Rated power

8000W

Frequency

50Hz-60Hz

Ultrasonic Frequency

20000Hz

Amplitude

20%-40%

Cross cutting speed

20-60cuts/Minute; high-speed model:60-180cuts/Minute

Slit cutting speed

30-40cuts/Minute; high-speed model:40-100cuts/Minute

Number of blades

4 (optional)

Blade materials

Titanium Alloy

Blade size

300mm/pc (optional)

Cut type

Square, rectangular, slices

Components

No.

Name of Component

Brand

Introduction


1

Ultrasonic Blade

Wanlisonic

Made of Titanium Alloy material, The mechanical strength is better than that of steel, the acoustic transmission is good, the sound frequency is not depleted in its internal transmission, and it has strong acid-base corrosion ability,


2

Ultrasonic Generator

Wanlisonic

The advantages of original ultrasonic generator include automatic frequency lock function, automatic frequency tracking,low coefficient of temperature change, and there will be 7*24 hours of aging test before delivery.


3

Thicken and Bigger Cutting Machine Framework

Wanlisonic

Stainless steel, easy to clean, made with thicken china standard material, made by Anshan Iron and Steel Company


4

Energy Transducer

Wanlisonic

Electric energy is converted to kinetic energy, to make the blade cut the products


5

Touch Screen

Wecon/Delta

Intelligence control, for the operation and monitor


6

PLC Control System

Wecon/Delta

Anti-error operation, safety testing, alarm indication


7

Reley

OMRON

Touch switch


8

Sensor

Leuze

For Testing whether have the products under the blade


9

Frequency Inverter

SANJING or Delta

Driving the conveyor to work


10

Servo Motor

Dorna

Driving the blade to work


11

Stepmotor

Dorna

Driving the blade to work
