Wanlisonic Ultrasonic Roll Cake Cutting Machine Automatic Paper Packing Equipment for Food for Hotels Gearbox Core Component

Wanlisonic Ultrasonic Roll Cake Cutting Machine Automatic Paper Packing Equipment for Food for Hotels Gearbox Core Component

Wanli automatic ultrasonic cake rolling cutting machine, using innovative technology, ultrasonic technology as the core, the rolling cutting process is efficient and accurate, can quickly cut the cake forming, improve production efficiency. It can handle cakes of any shape, from flat cakes with rich structure to crisp pastry cakes - cut cleanly and with straight edges. To provide high-quality solutions for cake manufacturers to achieve fully automatic operation and reduce labor costs.

Description

Model	Wanlisp4-300K1450L2000 (plus)
Dimensions	L3000W900H1400mm(according to the final drawing)
Weight	Net Wt. 400KGS, Gross Wt.500KGS
Voltage	220V
Rated power	7000W
Frequency	50Hz-60Hz
Cutting speed	20-40 cuts/minute( adjustable)
Number of blades	2 (optional)
Blade materials	Titanium Alloy
Blade size	300mm(optional)
Cut type	slices
Maximum cutting size	Width 600mm, height up to 80mm (can be customized)
Material of machine frame	Stainless Steel
Automatic belt convey	Yes
Convey speed	0-3000mm
Safety protection system	Security door, frequency ultrasonic scan and fault indicator lamp
Control System	Five-axis Control System
Cutting knife control system	Servo motor
Certification	CE

· STAINLESS STEEL FRAME

· TITANIUM ALLOY ULTRASONIC KNIFE

· SECURITY DOOR

· INTERFACE TOUCH SCREEN CONTROL

· ONLINE MAINTENANCE SUPPORT

· VERSATILITY ON FOOD

· EXTENDING BELT UNDERCARRIAGE

Applications

1. Bread cutting
2. Cut the cake
3. Cheese cutting
4. Dough cut
5. Cookie cutter
6. Gummy nougat cutting
7. Pizza cheese and butter
8. Cut frozen meat and aquatic products
9. Plant fiber, nut cutting

Other products feel free to contact us>>

The cutting mode of the device: slice mode.

Working speed and angle parameters are adjustable.

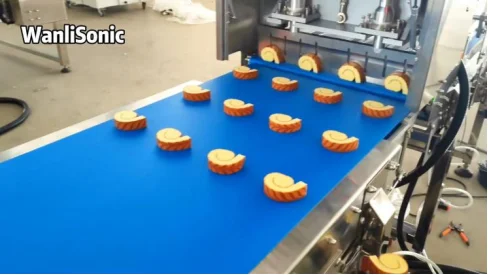

Swiss roll cake cutting mode

Bread slice mode

Ultrasonic Cutter

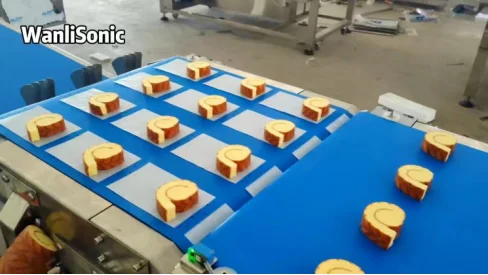

Automatic Paper Cutter

Automatic Turner

Advantages

1. Ultrasonic cutting reduces friction, fine incision, no chip, no deformation, smooth and beautiful section.

2. Dimensional accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
8. Automatically chase ultrasonic drive power, real-time tracking of ultrasonic cutting knife frequency, to ensure that the ultrasonic cutter work in a stable state, suitable for long hours of continuous work.

Brand Ultrasonic Transducer

Brand Ultrasonic Generator

Titanium Alloy Blade

Benefits

1. Pleasing cut and form stability, win the hearts of consumers.
2. Save material cost, automatic mechanical control structure to achieve less waste and large output.
3. Save labor costs.Fully automatic operation, one person can operate many machines at the same time.
4. Responding to market consumer needs, food hygiene.
5. Easy washing and maintenance, Reduction in maintenance and down times.
