Wanli Factory Supplier Ultrasonic Automatic Round Cake Cutting Machine for Mass Food Production

Wanli Factory Supplier Ultrasonic Automatic Round Cake Cutting Machine for Mass Food Production

Description

Model	Wanlisp1-250K300L1200
Dimensions	L1200W300H1400mm
Weight	Net Wt. 170KGS, Gross Wt.300KGS
Voltage	220V
Rated power	3KW
Frequency	50Hz-60Hz
Cutting speed	30-180 cuts/minute
Number of blades	1-2 (optional)
Blade materials	Titanium Alloy
Blade size	100-305mm(optional)
Cut type	rectangular, slices
Maximum cutting size	width 300mm, height up to 130mm
Material of machine frame	Stainless Steel
Automatic belt convey	Yes
Convey speed	0-3000mm
Safety protection system	Security door, frequency ultrasonic scan and fault indicator lamp
Control System	Five-axis Control System
Cutting knife control system	Servo motor
Certification	CE

· HIGH SPEED CUTTING

· STAINLESS STEEL FRAME

· TITANIUM ALLOY ULTRASONIC KNIFE

· SECURITY DOOR

· ONLINE MAINTENANCE SUPPORT

· VERSATILITY ON FOOD

· BELT UNDERCARRIAGE

The device with slice mode.

Working speed and angle parameters are adjustable.

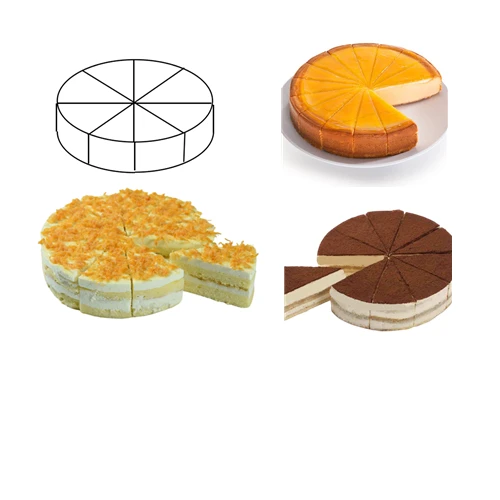

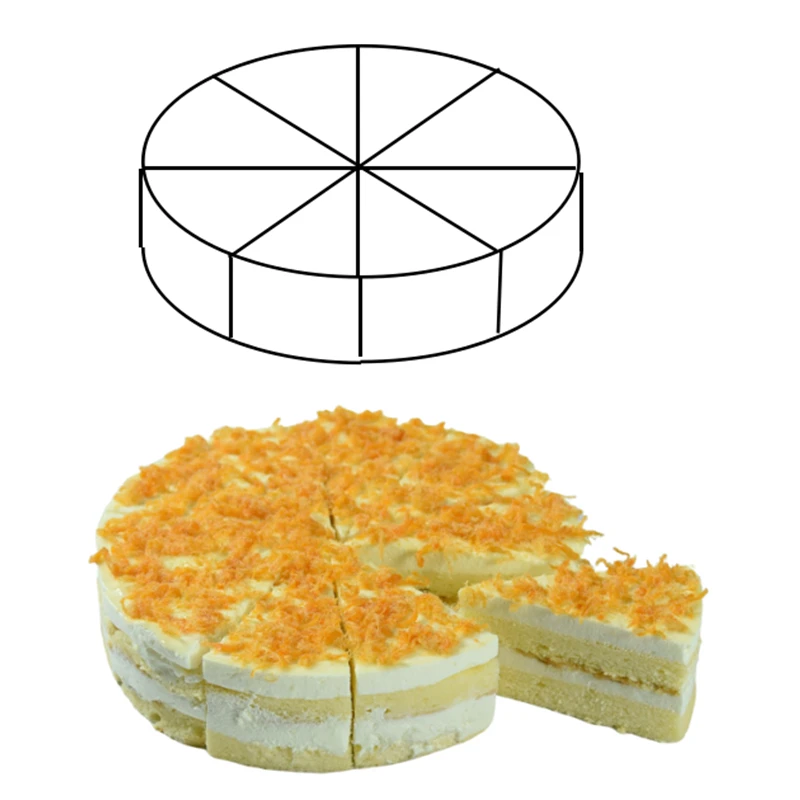

Food slice mode

Applied to variety of food:

Toast/Bread

Cheese/Butter

Candy/Nougat

Cookies etc.

Applications

1. Bread slice
2. Sponge cake cut
3. Cheese slice
4. Dough cut
5. Cookie slice
6. Gummy nougat cutting
7. Butter cut

Other products feel free to contact us>>

Advantages

1. Ultrasonic cutting reduces friction, fine incision, no chip, no deformation, smooth and beautiful section.

2. Dimensional accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
8. Automatically chase ultrasonic drive power, real-time tracking of ultrasonic cutting knife frequency, to ensure that the
ultrasonic cutter work in a stable state, suitable for long hours of continuous work.

Brand Ultrasonic Transducer

Brand Ultrasonic Generator

Titanium Alloy Blade

Benefits

1. Pleasing cut and form stability, win the hearts of consumers.
2. Save material cost, automatic mechanical control structure to achieve less waste and large output.
3. Save labor costs.Fully automatic operation, one person can operate many machines at the same time.
4. Responding to market consumer needs, food hygiene.
5. Easy washing and maintenance, Reduction in maintenance and down times.
