Wanlisonic Ultrasonic Automatic Nougat Cutting Machine Dessert Slicing Cooking Equipment Food Processing Machinery

Wanlisonic Ultrasonic Automatic Nougat Cutting Machine Dessert Slicing Cooking Equipment Food Processing Machinery

Wanlisonic ultrasonic automatic nougat cutting machine, which combines advanced ultrasonic technology, for dessert slicing, cooking and other processing links. Smooth carving, regular shape, suitable for cutting nougat and various desserts. The equipment has a high degree of automation, and the parameters can be adjusted according to the characteristics of the product, which can not only ensure the quality stability, but also improve the efficiency and standardization of food processing.

Description

Model	Wanlisp4-300K1450L2000
Dimensions	L2000W900H1400mm
Weight	Net Wt. 210KGS, Gross Wt.310KGS
Voltage	220V
Rated power	4000W
Frequency	50Hz-60Hz
Cutting speed	10-80 cuts/minute( adjustable)
Number of blades	2-10 (optional)
Blade materials	Titanium Alloy
Blade size	100-305mm(optional)
Cut type	slices
Maximum cutting size	Width 600-2000mm, height up to 75mm (optional)
Material of machine frame	Stainless Steel
Automatic belt convey	Yes
Convey speed	0-3000mm
Safety protection system	Security door, frequency ultrasonic scan and fault indicator lamp
Control System	Four-axis Control System
Cutting knife control system	Servo motor
Certification	CE

· HIGH SPEED CUTTING

· STAINLESS STEEL FRAME

· TITANIUM ALLOY ULTRASONIC KNIFE

· SECURITY DOOR

· ONLINE MAINTENANCE SUPPORT

· VERSATILITY ON FOOD

· BELT UNDERCARRIAGE

Applications

1. Bread slice
2. Sponge cake cut
3. Cheese slice
4. Dough cut
5. Cookie slice
6. Gummy nougat cutting
7. Butter cut

Other products feel free to contact us>>

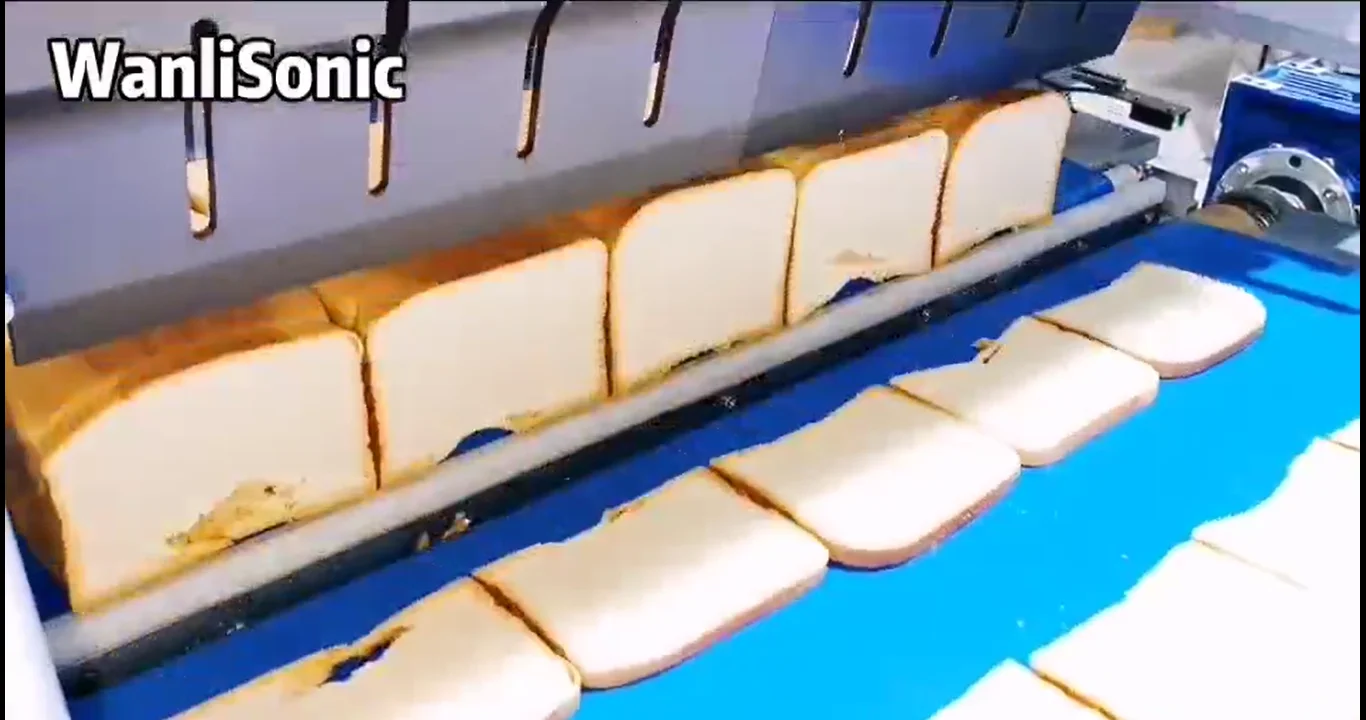

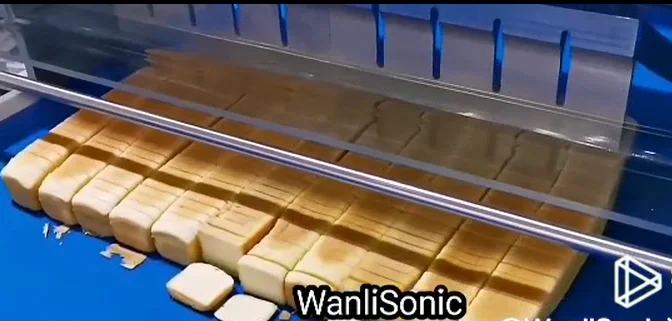

The device with slice mode.

Working speed and angle parameters are adjustable.

Food slice mode

Applied to variety of food:

Toast/Bread

Cheese/Butter

Candy/Nougat

Cookies etc.

Advantages

1. Ultrasonic cutting reduces friction, fine incision, no chip, no deformation, smooth and beautiful section.

2. Dimensional accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
8. Automatically chase ultrasonic drive power, real-time tracking of ultrasonic cutting knife frequency, to ensure that the
ultrasonic cutter work in a stable state, suitable for long hours of continuous work.

Brand Ultrasonic Transducer

Brand Ultrasonic Generator

Titanium Alloy Blade

Benefits

1. Pleasing cut and form stability, win the hearts of consumers.
2. Save material cost, automatic mechanical control structure to achieve less waste and large output.
3. Save labor costs.Fully automatic operation, one person can operate many machines at the same time.
4. Responding to market consumer needs, food hygiene.
5. Easy washing and maintenance, Reduction in maintenance and down times.
