Wanlisonic Customized Ultrasonic Frozen Mousse Cream Cake Cutting Machine Square Cake Slicing Machine

Wanlisonic Customized Ultrasonic Frozen Mousse Cream Cake Cutting Machine Square Cake Slicing Machine

Customized ultrasonic frozen cream cake cutting machine for square cake slice from Wanlisonic According to the characteristics of frozen cream cake, the cutting frequency and amplitude can be well controlled by the principle of ultrasonic technology, to ensure that during the cutting process does not overflow cream, the body does not deform, the slice is uniform and the edge is neat. Used extensively in cake making enterprises to enhance production efficiency and product quality.

Description

Product Overview

The device has three cutting modes: cut rectangle/square, triangle and round cake slice mode.

Working speed and angle parameters are adjustable.

Applications

1. Cake cutting
2. Cake slicing
3. Cheese cutting

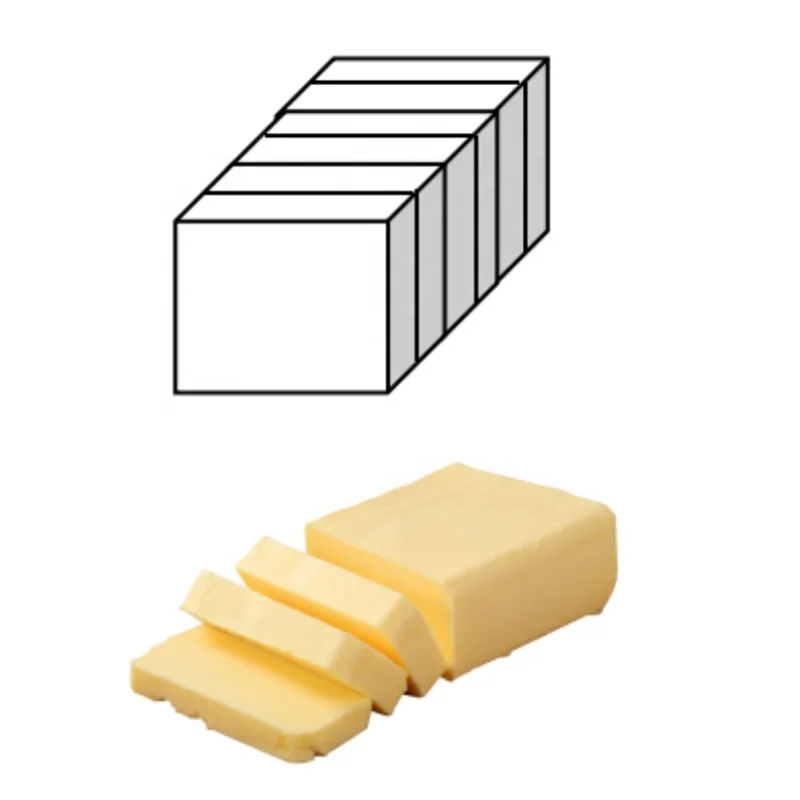

4. Butter cutting
5. Pizza cutter
6. Gummy nougat cutting
7. Dough cut
8. Sandwich cutting
9. Plant fiber, nut cutting

Other products feel free to contact us>>

FEATURES AT A GLANCE

· STAINLESS STEEL FRAME

· TITANIUM ALLOY ULTRASONIC KNIFE

· SELF-WASHING UNIT

· COMPACT SIZE

· MUTI-FUNCTION CUTTING

· VERSATILITY ON FOOD

· ONLINE MAINTENANCE SUPPORT

PRODUCT SPECIFICATIONS

Model	Wanlisp2-305K920L1700
Dimensions	L1270W920H1700mm
Weight	Net Wt. 320KGS, Gross Wt.420KGS
Voltage	220V
Rated power	4000W
Frequency	50Hz-60Hz
Cutting speed	35-60cuts/minute
Number of blades	1-6 (optional)
Blade materials	Titanium Alloy
Blade size	100-305mm(optional)
Cut type	Square, rectangular, cake slice, if cut triangle shape, need to lengthen the blade width
Maximum cutting size	600mmx400mm,food cutting height up to 75mm, blade up height:100mm. food height exceeds 75mm can be customized
Material of machine frame	Stainless Steel
Self cleaning	Yes or optional, need water and air compressor 7KGS
Safety protection system	Infrared inspection, frequency ultrasonic scan and fault indicator lamp
Control System	Four-axis Control System
Cutting knife control system	Servo motor
Machine mobility	Casters
Certification	CE

Advantages

1. Ultrasonic cutting reduces friction, fine incision, no chip, no deformation, smooth and beautiful section.2. Dimensional
accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
8. Automatically chase ultrasonic drive power, real-time tracking of ultrasonic cutting knife frequency, to ensure that the
ultrasonic cutter work in a stable state, suitable for long hours of continuous work.

Cutting Schematic Model

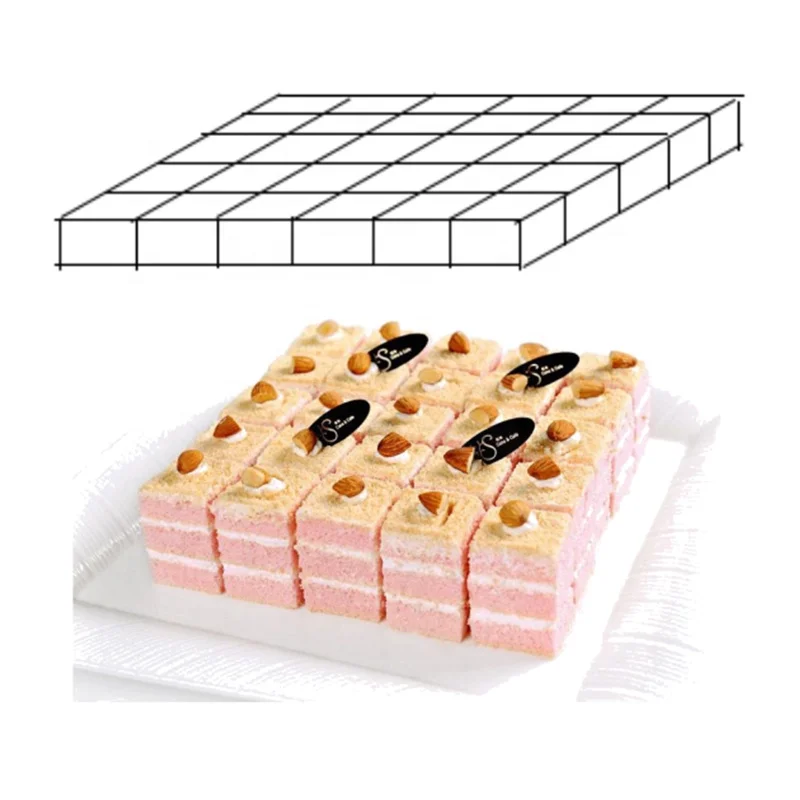

Rectangular and square cutting mode

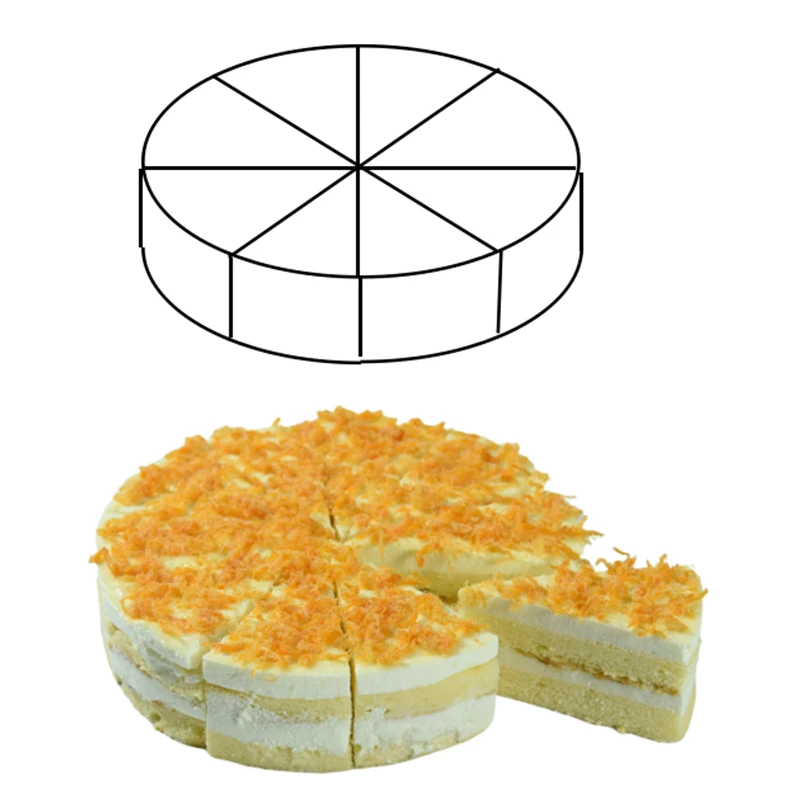

Round cake slice

Triangle cutting mode

PRODUCT CONFIGURATION

Brand Ultrasonic Transducer

Brand Ultrasonic Generator

Titanium Alloy Blade

Benefits

1. Pleasing cut and form stability, win the hearts of consumers.
2. Save material cost, automatic mechanical control structure to achieve less waste and large output.
3. Save labor costs.Fully automatic operation, one person can operate many machines at the same time.
4. Responding to market consumer needs, food hygiene.
5. Easy washing and maintenance, Reduction in maintenance and down times.

Certification

Package & Delivery

SALES AND SERVICE NETWORK

Our Customers

About our factory

ZHANGZHOU WANLI MACHINERY CO.,LTD.

Zhangzhou Wanli Machinery Co., Ltd., , located in Dongyuan Industrial Park Zone, Zhangzhou city, Fujian Province. Zhangzhou Wanli Machinery Trade Co., Ltd. is the Foreign Trade Department and wholly-owned subsidiary of our factory. And we are also a company of integrating R&D, production, sales, and service. We are specializing in the research and manufacturing of high-tech food machinery, which provide a new mode of production for food companies. For example, ultrasonic food cutting machine, this equipment can cut various shapes for food, such as frozen food, sticky food, volatile food, easy moldy food, and tough food(such as sandwich cake bread, box cake, sliced bread, Swiss roll cake, date cake, etc.). Ultrasonic cutters have the following characteristics, they do not stick to the knife during operation; they do not deform the food, and the cut surface is very neat (such as cakes, soft breads, and other easily deformable foods). It could also be controlled by CNC, and could have high output in the production line cutting. Our company strictly follows the principle of "Quality First, Reputation First", upholding the tenet of "winning by quality, gaining honor by honesty." With good reputation, high-end product quality, and excellent service, we keep our products lasting. Our products have been recognized and supported by domestic and foreign distributors, and exported to Europe and the United States, Europe, the Middle East, Southeast Asia, Oceania and other countries and regions. We will provide you with first-class products and services with the constant pursuit of perfect quality and the spirit of excellence. Sincere cooperation with new and old customers sincerely creates brilliant! Welcome all guests to visit us!

Exhibition

Our Advertise

FAQ

Q: What is your MOQ ?

A: We accept any quantity as your need.

Q: What should i do before ordering?
A: Before ordering, we need confirm the drawings and price, and confirm the material you chose, then you can start to order. If you need our designer to check the site, we can discuss too.

Q: How long is the production lead time?
A: It costs 15 to 30 days for different models of the machine you choose. If your orders are urgent, we will make it faster as your need.

Q: What’s the warranty of your products?
A: We supply good quality products, all the products is under strictly quality inspection.Provide Free Maintenance Within One Year.Damage Caused by Human Factors such as due to the Buyer Shall be Borne by the Buyer all Repair Costs; After the Warranty Period, The Seller provides Paid Maintenance Services for Life.

Q: What is your payment term?
A: Our normal payment term is TT 30% deposit after contract signed and 70% before delivery. We also accept LC at sight.

Q: Do you have the installation service?
A: If needed, We will send our engineer to install the machine for the first-time freely, but customers have to bear hotels and accommodation. For the next time maintain the machine, customers have to bear the air ticket also.
