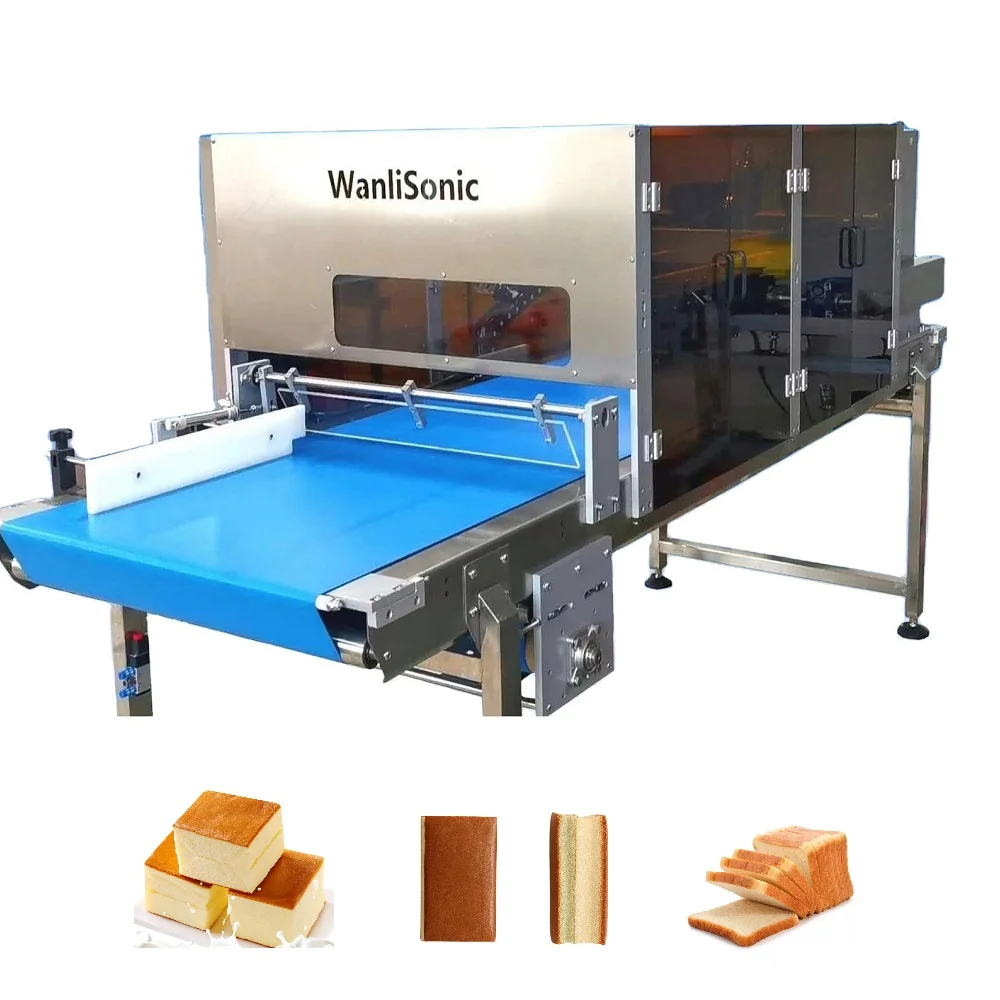

Wanlisonic Customized High Output Ultrasonic Continuous Chiffon Cake Cutting Machine

Wanlisonic Customized High Output Ultrasonic Continuous Chiffon Cake Cutting Machine

Ultrasonic chiffon continuous cutting machine has high output, high precision of high-frequency vibration, and continuous cutting chiffon cake does not destroy the density and texture of the cake, avoiding the collapse of the cake. Just put the chiffon cake on the conveyor belt, set the cutting parameters, the machine can continuously and efficiently cut the cake quickly, greatly improve the production efficiency, is the ideal choice for cake manufacturers.

Description

Product Overview

The device has two cutting modes: cut rectangle and slice mode.

Working speed and angle parameters are adjustable.

Applications

1. Bread cutting
2. Cut the cake
3. Cheese cutting
4. Dough cut
5. Cookie cutter
6. Gummy nougat cutting
7. Pizza cheese and butter
8. Cut frozen meat and aquatic products
9. Plant fiber, nut cutting

Other products feel free to contact us>>

FEATURES AT A GLANCE

· STAINLESS STEEL FRAME

· TITANIUM ALLOY ULTRASONIC KNIFE

· SECURITY DOOR

· INTERFACE TOUCH SCREEN CONTROL

· ONLINE MAINTENANCE SUPPORT

· VERSATILITY ON FOOD

· EXTENDING BELT UNDERCARRIAGE

Ultrasonic Knife

Non-sticky Knife

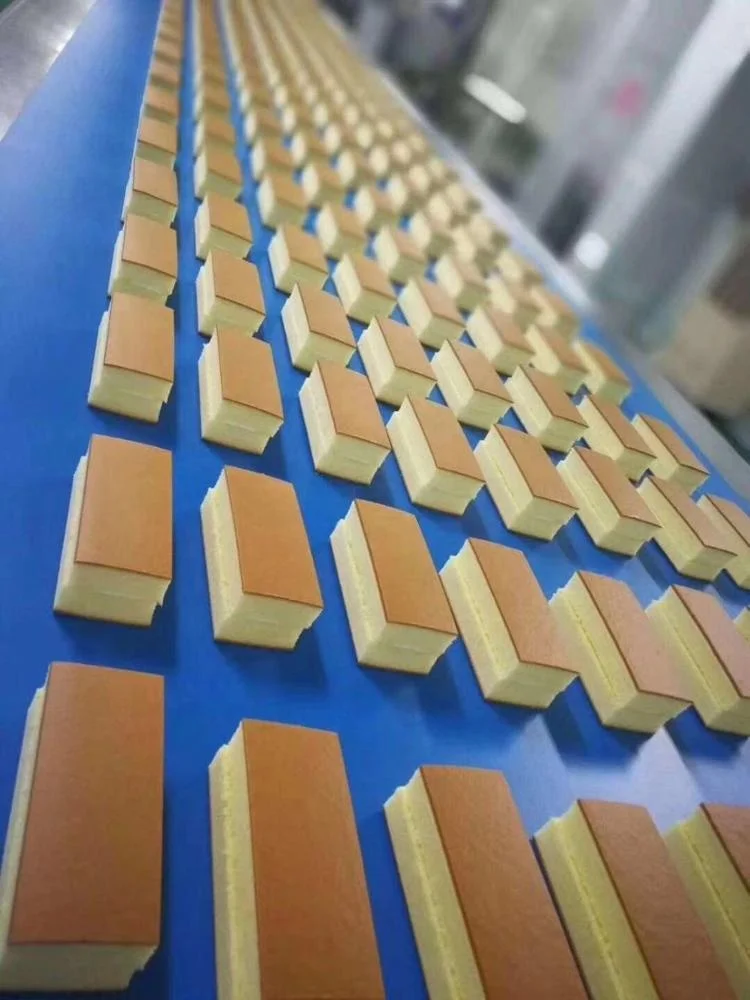

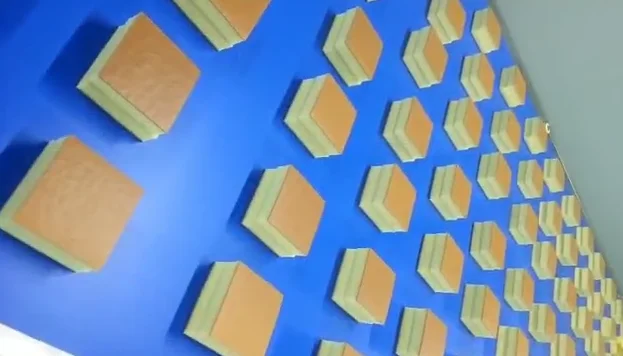

Final Product

PRODUCT SPECIFICATIONS

Model	Wanlisp4-300K900L3500
Dimensions	L3000W1400H1600mm
Weight	Net Wt. 500KGS, Gross Wt.600KGS
Voltage	220V
Rated power	5000W
Frequency	50Hz-60Hz
Cutting speed	Cross cutting 60 cuts/minute, slitting 30 cuts/minutes
Number of blades	2-5 (optional)
Blade materials	Titanium Alloy
Blade size	100-305mm(optional)
Cut type	Square, rectangular, slices
Maximum cutting size	600mmx600mm, height up to 75mm (can be customized)
Material of machine frame	Stainless Steel
Automatic belt convey	Yes
Convey speed	0-3000mm
Safety protection system	Security door, frequency ultrasonic scan and fault indicator lamp
Control System	Five-axis Control System
Cutting knife control system	Servo motor
Certification	CE

Advantages

1. Ultrasonic cutting reduces friction, fine incision, no chip, no deformation, smooth and beautiful section.

2. Dimensional accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
8. Automatically chase ultrasonic drive power, real-time tracking of ultrasonic cutting knife frequency, to ensure that the
ultrasonic cutter work in a stable state, suitable for long hours of continuous work.

Cutting Schematic Model

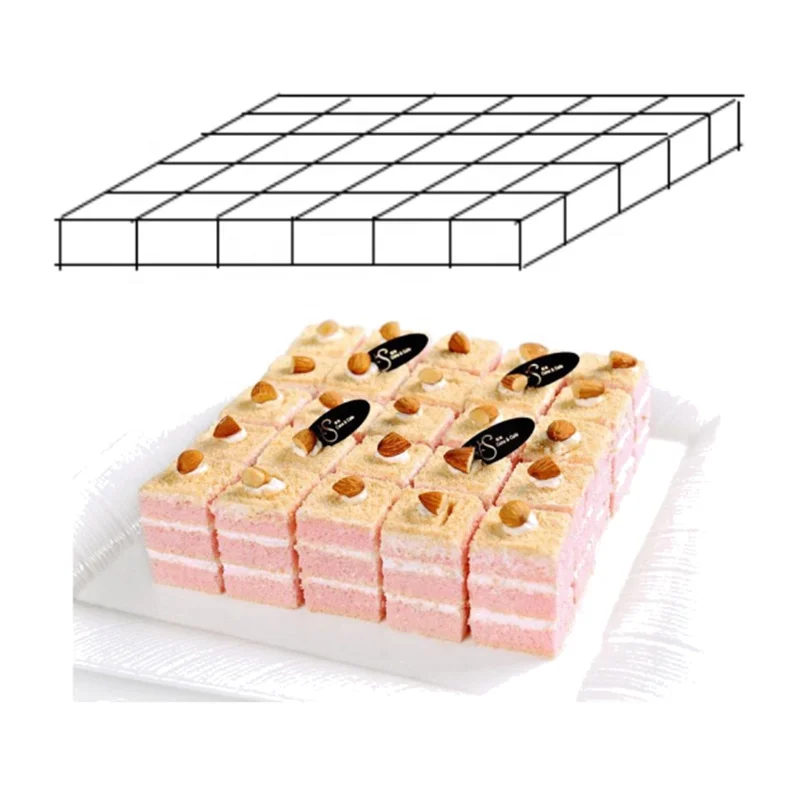

Rectangular and square cutting mode

Slice mode

PRODUCT CONFIGURATION

Brand Ultrasonic Transducer

Brand Ultrasonic Generator

Titanium Alloy Blade

Benefits

1. Pleasing cut and form stability, win the hearts of consumers.
2. Save material cost, automatic mechanical control structure to achieve less waste and large output.
3. Save labor costs.Fully automatic operation, one person can operate many machines at the same time.
4. Responding to market consumer needs, food hygiene.
5. Easy washing and maintenance, Reduction in maintenance and down times.

Certification

Package & Delivery

SALES AND SERVICE NETWORK

Our Customers

About our factory

ZHANGZHOU WANLI MACHINERY CO.,LTD.

Zhangzhou Wanli Machinery Co., Ltd., , located in Dongyuan Industrial Park Zone, Zhangzhou city, Fujian Province. Zhangzhou Wanli Machinery Trade Co., Ltd. is the Foreign Trade Department and wholly-owned subsidiary of our factory. And we are also a company of integrating R&D, production, sales, and service. We are specializing in the research and manufacturing of high-tech food machinery, which provide a new mode of production for food companies. For example, ultrasonic food cutting machine, this equipment can cut various shapes for food, such as frozen food, sticky food, volatile food, easy moldy food, and tough food(such as sandwich cake bread, box cake, sliced bread, Swiss roll cake, date cake, etc.). Ultrasonic cutters have the following characteristics, they do not stick to the knife during operation; they do not deform the food, and the cut surface is very neat (such as cakes, soft breads, and other easily deformable foods). It could also be controlled by CNC, and could have high output in the production line cutting. Our company strictly follows the principle of "Quality First, Reputation First", upholding the tenet of "winning by quality, gaining honor by honesty." With good reputation, high-end product quality, and excellent service, we keep our products lasting. Our products have been recognized and supported by domestic and foreign distributors, and exported to Europe and the United States, Europe, the Middle East, Southeast Asia, Oceania and other countries and regions. We will provide you with first-class products and services with the constant pursuit of perfect quality and the spirit of excellence. Sincere cooperation with new and old customers sincerely creates brilliant! Welcome all guests to visit us!

Our Advertise

Exhibition

FAQ

Q: What is your MOQ ?

A: We accept any quantity as your need.

Q: What should i do before ordering?
A: Before ordering, we need confirm the drawings and price, and confirm the material you chose, then you can start to order. If you need our designer to check the site, we can discuss too.

Q: How long is the production lead time?
A: It costs 15 to 30 days for different models of the machine you chose. If your orders are urgent, we will make it faster as your need.

Q: What’s the warranty of your products?
A: We supply good quality products, all the products is under strictly quality inspection.Provide Free Maintenance Within One Year.Damage Caused by Human Factors such as due to the Buyer Shall be Borne by the Buyer all Repair Costs; After the Warranty Period, The Seller provides Paid Maintenance Services for Life.

Q: What is your payment term?
A: Our normal payment term is TT 30% deposit after contract signed and 70% before delivery. We also accept LC at sight.

Q: Do you have the installation service?
A: If needed, We will send our engineer to install the machine for the first-time freely, but customers have to bear hotels and accommodation. For the next time maintain the machine, customers have to bear the air ticket also.

Any requirements or questions feel free to contact us!

Email:[email protected] Tel/WhatsApp/WeChat: 0086-1575-9600-601
