Description

Model	Wanlisp2-305K920L1700
Dimensions	L1270W920H1700mm
Weight	Net Wt. 320KGS, Gross Wt.420KGS
Voltage	220V
Rated power	4000W
Frequency	50Hz-60Hz
Cutting speed	35-60cuts/minute
Number of blades	1-6 (optional)
Blade materials	Titanium Alloy
Blade size	100-305mm(optional)
Cut type	Square, rectangular, cake slice, if cut triangle shape, need to lengthen the blade width
Maximum cutting size	600mmx400mm,food cutting height up to 75mm, blade up height:100mm. food height exceeds 75mm can be customized
Material of machine frame	Stainless Steel
Self cleaning	Yes or optional, need water and air compressor 7KGS
Safety protection system	Infrared inspection, frequency ultrasonic scan and fault indicator lamp
Control System	Four-axis Control System
Cutting knife control system	Servo motor
Machine mobility	Casters
Certification	CE

· STAINLESS STEEL FRAME

· TITANIUM ALLOY ULTRASONIC KNIFE

· SELF-WASHING UNIT

· COMPACT SIZE

· MUTI-FUNCTION CUTTING

· VERSATILITY ON FOOD

· ONLINE MAINTENANCE SUPPORT

Advantages

1. Ultrasonic cutting reduces friction, fine incision, no chip, no deformation, smooth and beautiful section.2. Dimensional
accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
8. Automatically chase ultrasonic drive power, real-time tracking of ultrasonic cutting knife frequency, to ensure that the
ultrasonic cutter work in a stable state, suitable for long hours of continuous work.

Applications

1. Cake cutting
2. Cake slicing
3. Cheese cutting
4. Butter cutting
5. Pizza cutter
6. Gummy nougat cutting
7. Dough cut
8. Sandwich cutting
9. Plant fiber, nut cutting

Other products feel free to contact us>>

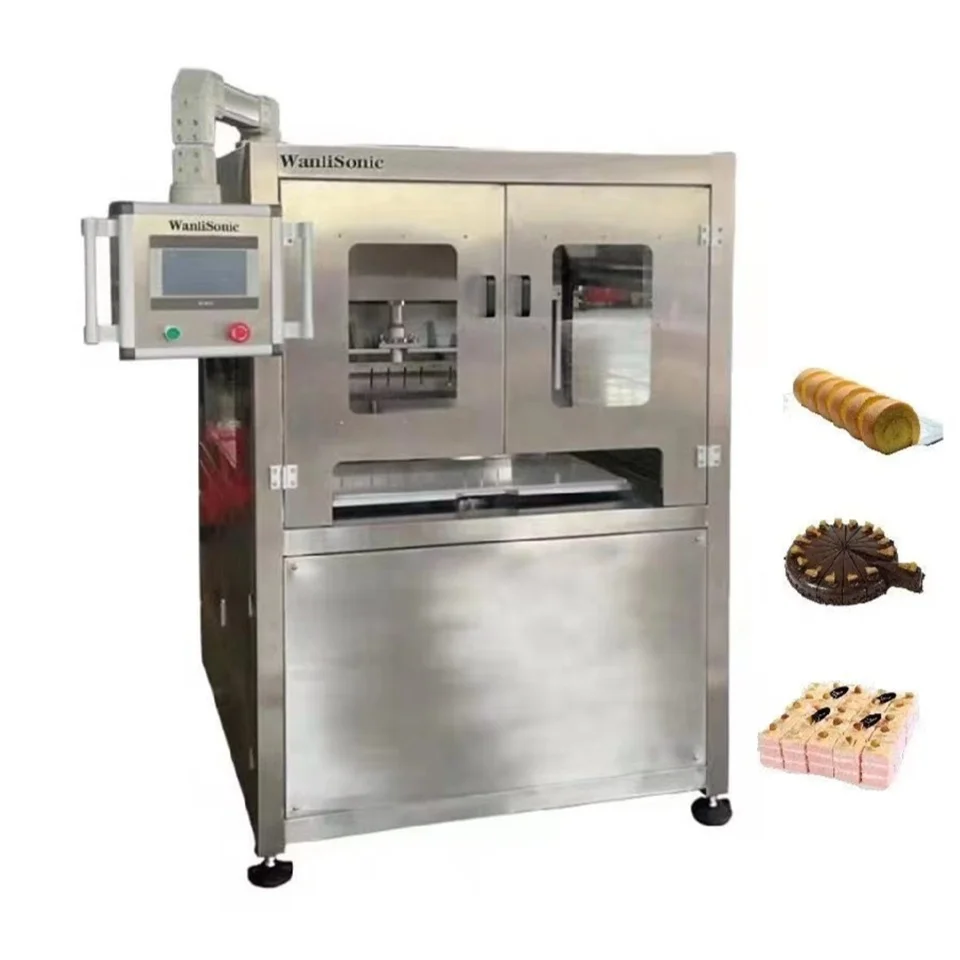

The device has three cutting modes: cut rectangle/square, triangle and round cake slice mode.

Working speed and angle parameters are adjustable.

Rectangular and square cutting mode

Round cake slice

Triangle cutting mode

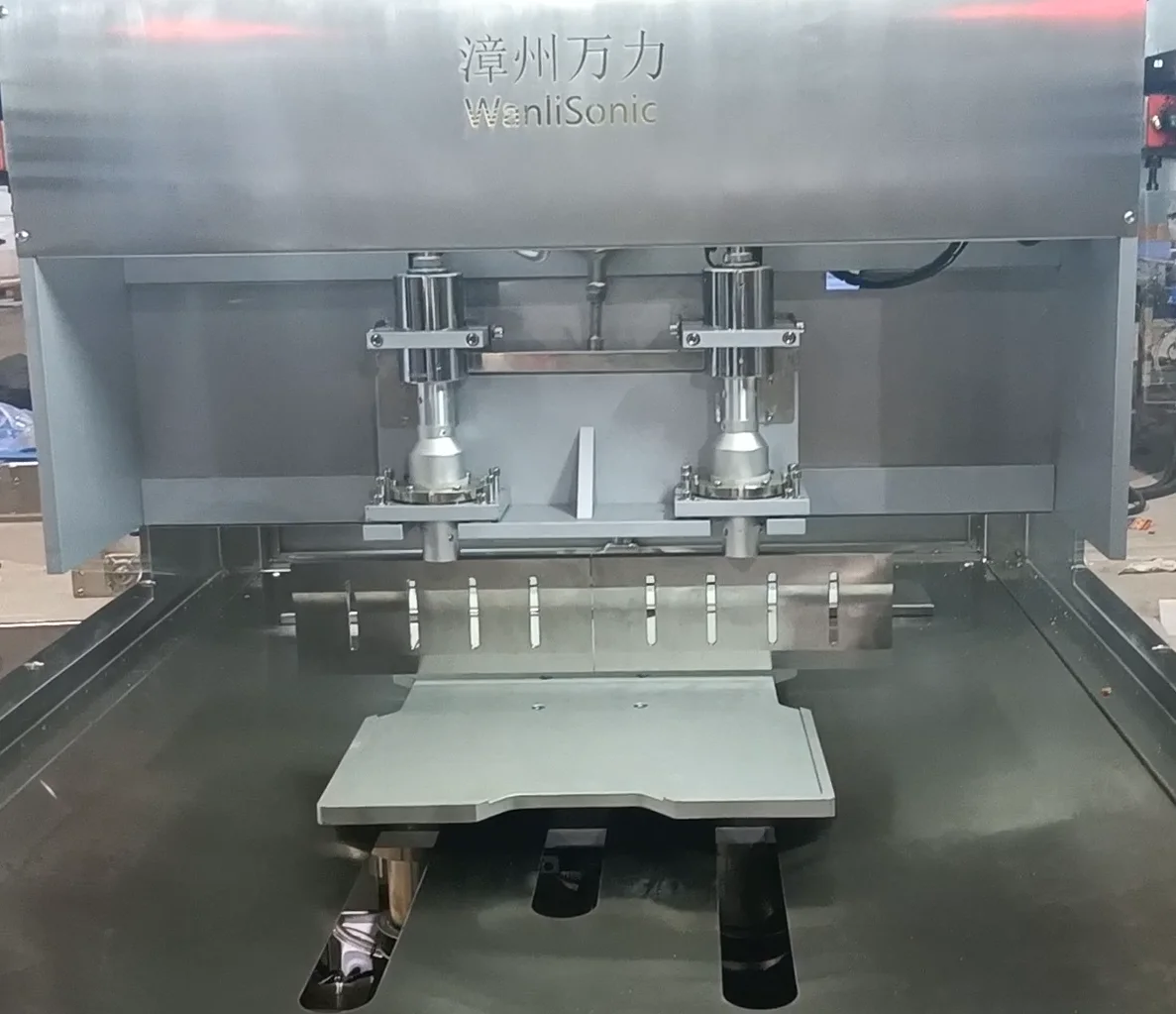

Brand Ultrasonic Transducer

Brand Ultrasonic Generator

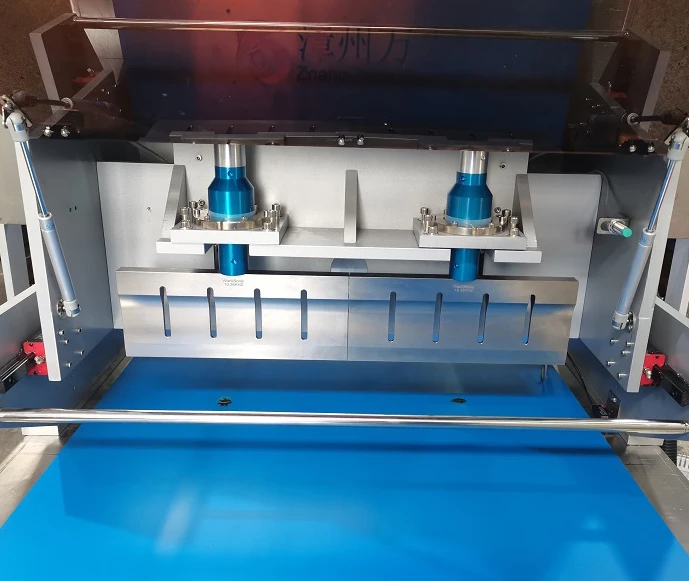

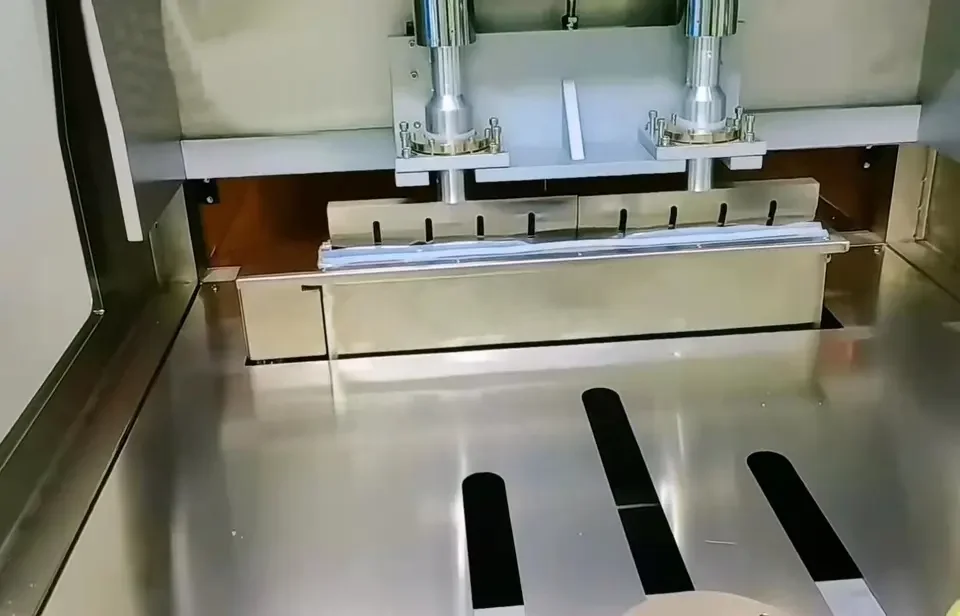

Titanium Alloy Blade

Benefits

1. Pleasing cut and form stability, win the hearts of consumers.
2. Save material cost, automatic mechanical control structure to achieve less waste and large output.
3. Save labor costs.Fully automatic operation, one person can operate many machines at the same time.
4. Responding to market consumer needs, food hygiene.
5. Easy washing and maintenance, Reduction in maintenance and down times.
