Wanli Bakery Machinery Commercial Customized Ultrasonic Cream Square Cake Cutting Machine

Wanli Bakery Machinery Commercial Customized Ultrasonic Cream Square Cake Cutting Machine

If you want to learn more, continue buying the 2023 Wanli Baking Machinery brand tailors made ultrasonic cream square cake cutting machine. It collateral based on ultrasonic high-frequency vibration, activates the cutting edge to quickly vibration, precision into the cake, with minimum cream overflow and cake deformation. According to different cake sizes and cream texture can be customized parameters, ensure smooth incision, improve cutting efficiency and product aesthetics.

Description

Product Overview

The device has two cutting modes: cut rectangle and slice mode.

Working speed and angle parameters are adjustable.

Applications

1. Bread cutting
2. Cut the cake
3. Cheese cutting
4. Dough cut
5. Cookie cutter
6. Gummy nougat cutting
7. Pizza cheese and butter
8. Cut frozen meat and aquatic products
9. Plant fiber, nut cutting

Other products feel free to contact us>>

FEATURES AT A GLANCE

· STAINLESS STEEL FRAME

· TITANIUM ALLOY ULTRASONIC KNIFE

· SECURITY DOOR

· INTERFACE TOUCH SCREEN CONTROL

· ONLINE MAINTENANCE SUPPORT

· VERSATILITY ON FOOD

· EXTENDING BELT UNDERCARRIAGE

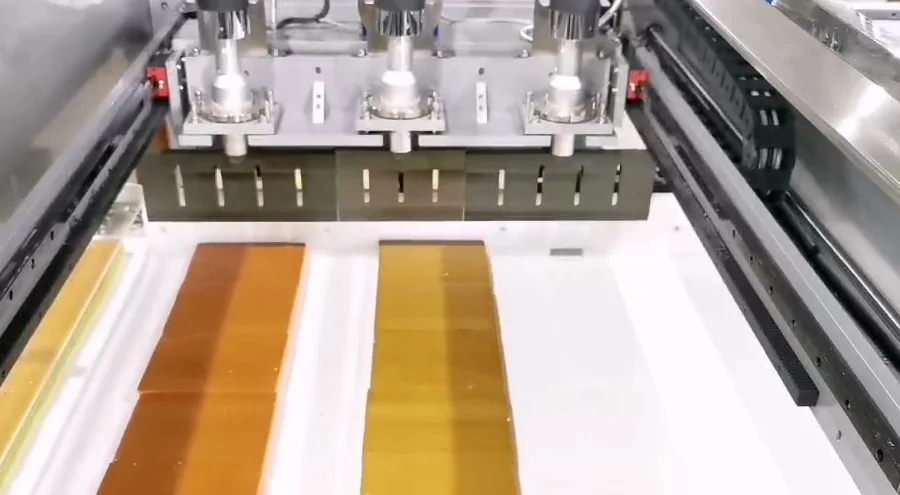

Ultrasonic Knife

Non-sticky Knife

Final Product

PRODUCT SPECIFICATIONS

Model	Wanlisp4-300K900L3500
Dimensions	L3000W1400H1600mm
Weight	Net Wt. 500KGS, Gross Wt.600KGS
Voltage	220V
Rated power	5000W
Frequency	50Hz-60Hz
Cutting speed	Cross cutting 60 cuts/minute, slitting 30 cuts/minutes
Number of blades	2-5 (optional)
Blade materials	Titanium Alloy
Blade size	100-305mm(optional)
Cut type	Square, rectangular, slices
Maximum cutting size	600mmx600mm, height up to 75mm (can be customized)
Material of machine frame	Stainless Steel
Automatic belt convey	Yes
Convey speed	0-3000mm
Safety protection system	Security door, frequency ultrasonic scan and fault indicator lamp
Control System	Five-axis Control System
Cutting knife control system	Servo motor
Certification	CE

Advantages

1. Ultrasonic cutting reduces friction, fine incision, no chip, no deformation, smooth and beautiful section.

2. Dimensional accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
8. Automatically chase ultrasonic drive power, real-time tracking of ultrasonic cutting knife frequency, to ensure that the
ultrasonic cutter work in a stable state, suitable for long hours of continuous work.

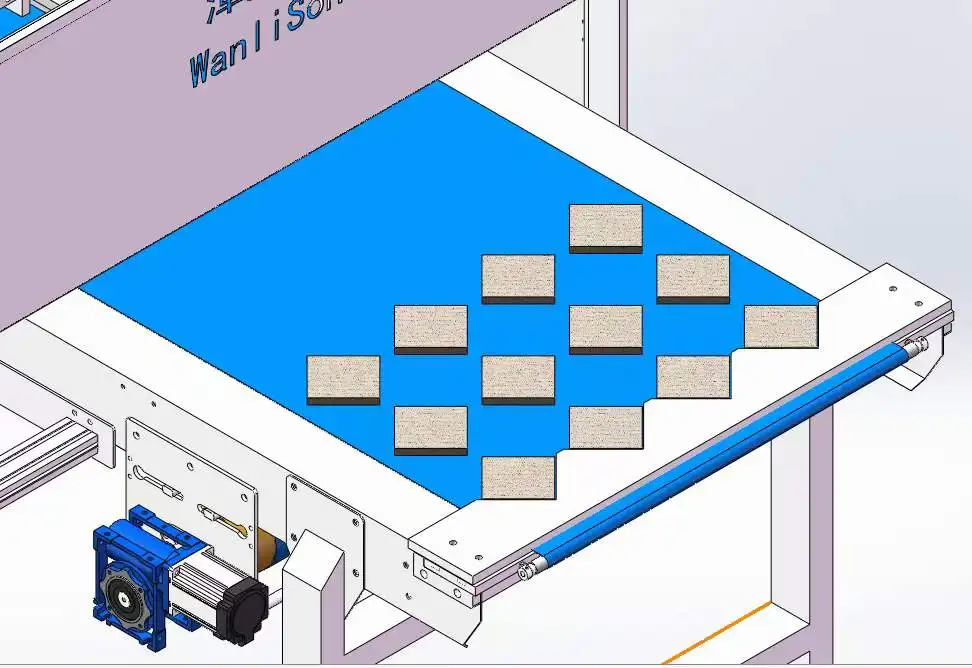

Cutting Schematic Model

Rectangular and square cutting mode

Slice mode

PRODUCT CONFIGURATION

Brand Ultrasonic Transducer

Brand Ultrasonic Generator

Titanium Alloy Blade

Benefits

1. Pleasing cut and form stability, win the hearts of consumers.
2. Save material cost, automatic mechanical control structure to achieve less waste and large output.
3. Save labor costs.Fully automatic operation, one person can operate many machines at the same time.
4. Responding to market consumer needs, food hygiene.
5. Easy washing and maintenance, Reduction in maintenance and down times.
